Overview
The One Za’abeel development in Dubai is not just celebrated for its record-breaking cantilevered structure (The Link) and redefining luxury hotels, hospitality and residential accommodation but also for its advanced digital asset handover and FM service delivery.
4FMS were appointed, over a 5-year period, as FM consultant by ITHRA (Developer) from Concept Design through construction, FM procurement, asset handover and mobilization of FM contractor and CAFM implementation.
“From concept design through construction and handover the client and 4FMS primary goal was to ensure Asset Information Requirements (AIR) and handover wasn’t just compliant but data was digitally implemented and validated. This required moving away from traditional late production PDF asset data to adopting a live, online and progressive digital capturing of data throughout the project development cycle (design, construction, asset handover and DLP). This was necessary not only to ensure accurate and validated asset data but also critically to enable service charge models and service cost apportionment between multiple end users of assets and services. In addition, the progressive capturing of asset data enabled us to include the asset registers and maintenance routines to be included the FM tender and contracts” said Scott Wilson (Managing Director, 4FMS).

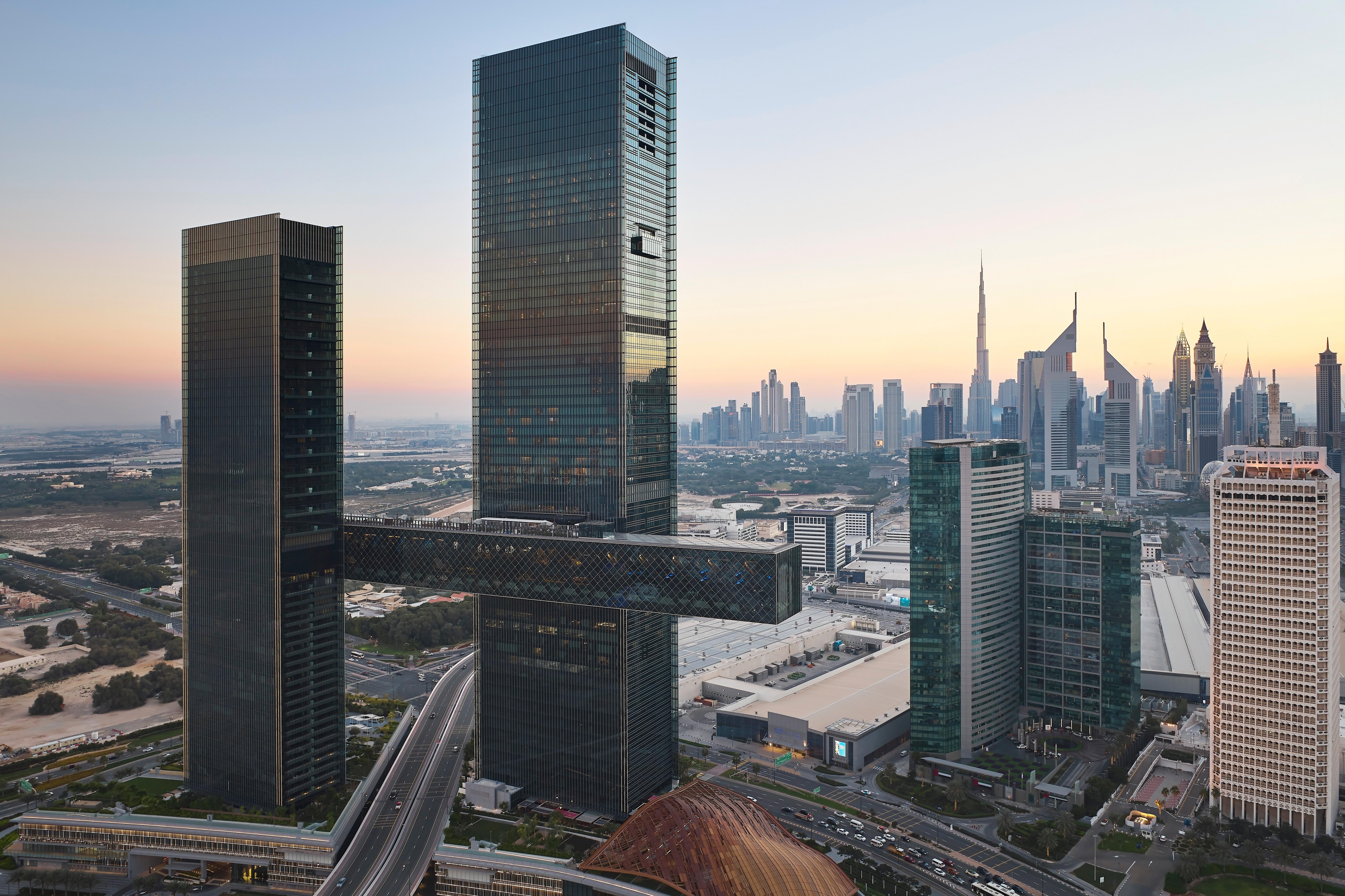

The iconic One Za’abeel mixed-use development in Dubai comprising twin towers and a Link structure for two 5-star hotels, branded residences, F&B, commercial offices, retail, residential apartments, podium and seven basements. The basements include for private garages, resident and visitor parking and a mechanical parking system. The development was (opened in first quarter of 2025) and included comprehensive and validated solutions using a specialist Project Handover Compliance Consultant (PHCC-WebFM) who also provided a bespoke digital technology system (Omtrak) to monitor, control, validate and report on all Asset Information Requirements (AIR) throughout the development life cycle and over the DLP.
Given the complexity of One Za’abeel, its components and the regulatory environment required a comprehensive suite of FM tender and performance-based contract documentation and technology solutions which were prepared and evaluated by 4FMS. This included for all FM service contract packages and division if scope and responsible between the ITHRA appointed FM service providers and the hotel / branded residence operators.
Early Engagement: Embedding Asset Information Requirements (AIR) into the project
From concept design through scheme and detailed and construction phases the 4FMS project design team and main contractor (Alec) recognised AIR digital readiness and early FM mobilization needed to be treated as strategic deliverables – not left until the end of the project. Given the size and complexity of the development with some 180,000-asset early alignment of asset data standards, asset segregation, asset information structures and FM tender requirement was considered to be critical to success.
Enter Omtrak and the PHCC team
Working on a collaborative basis with ITHRA Dubai and their lead design consultants, Project Management Consultants (PMC-Mace), FM Consultant (4FMS), Design Consultant (Nikken Japan and WSP Dubai) and the main contractor (Alec) and its many subcontractors, WebFM managed Alec and its numerous subcontractor’s compliance with the Asset Information Requirements (AIR) Specifications tailored to One Za’abeel’s asset handover and operational needs. The AIR specification (aligned with ISO 19650 Asset Information Management-AIM), prepared by 4FMS formed part of the construction tender and construction contract packages and included:
- Organisational Information Requirements (OIR)
- Structured Level of Information Need (LOIN) templates
- Defined asset register, classifications, tagging protocols, and digital attributes
- Requirements to segregate assets shared and dedicated beneficial use by each component
- Progressive milestone delivery schedules for asset information during construction and asset handover against a detailed project plan aligned with the construction programme with clearly defined data “dropdown” dates.
- Mapping of data to CAFM, Digital Twin, and FM procurement and 4FMS service charge models
“The difference was immediate,” said [Deepak Panicker Former Handover Manager & QA/QC Coordinator Alec]. “We knew from the outset what asset data was expected, how to structure it, how to segregate the data and when to progressively deliver digitally and online including for our numerous specialist subcontractors. This clarity saved us time, resource cost, and risk and enabled data to be validated and improved our data management operational efficiencies.”
WebFM QA/QC resourced who were part of the project team provided the main contractor and its subcontractors with system set up, training, monitoring, control, validation and monthly progress reporting progressively during the construction and handover periods against the AIR Project Plan aligned to the construction programme.
Live Solutions: Going Digital, Transparent and Validated Data
Throughout the design development and construction phases, all parties used OmTrak’s cloud-based AIR software system platform to deliver asset documentation in real time and on a progressive basis during construction, handover, validation and transfer to CAFM.
Instead of waiting until practical completion, contractors, specialist subcontractors and vendors uploaded asset registers, datasheets, O&M manuals, commissioning certificates, and drawings progressively against defined asset types, locations and milestones. The WebFM team monitored, controlled, validated and reported on compliance and alignment with the Contractor AIR specifications enabling:
- Real-time client, Mace and 4FMS reviews and approvals
- Early FM team asset data and contract familiarization
- Budget and service charge modelling and service cost allocations
- Data accuracy and validation
- Integration and validation in the CAFM system
- Immediate access to searchable, hyperlinked AIR documentation
- Retention of all digital asset data for future operations and change management
The asset registers were able to be provided as part of the FM tenders which were issued 8 months prior to construction completion.
The live asset management and handover methods became a cornerstone for the project’s operational readiness and success.“By the time the project reached soft opening “100% of the asset documentation was reviewed, validated, linked to the service charge models, service cost allocations and FM tenders and enabled data transfer and configuration in the CAFM system platform. That’s unheard of in the region.” said Scott.
Mobilising FM Operations Pre-Handover
Thanks to OmTrak’s structured AIR platform, Ithra’s appointed FM team, hotel and hospitality operators and FM service providers didn’t walk into a documentation black hole. Instead, 4FMS were able to prepare the One Za’abeel and hotel operator service charges and cost allocation models with reliable data. Data provided by WebFM enabled FM service providers and the CAFM system to have:
- Fully classified and segregated asset registers linked to locations, systems and end user beneficial use of shared and dedicated assets
- Defined planned preventive maintenance (PPM) schedules
- Validated warranty and guarantee information
- Hyperlinked as-built drawings, operations and maintenance (O&M) manuals to the validated asset registers in CAFM
- Seamless data uploads to CAFM for go-live CAFM and FM operational readiness
This led to:
- On-time procurement of FM services, attic stock validation, handover and spare parts procurement
- Zero-delay DLP monitoring and defects tracking and monitoring
- Full FM operational readiness before and following handover
Scott stated “the proper classification of the asset registers and maintenance routines (including segregation of assets shared and dedicated by and between the 7 components in the project) enabled accurate and relevant data to be included in the FM tenders and contracts for FM bid evaluation on an “apples for apples” basis and well in advance of construction completion”.
Scott also stated “the structured AIR data approach enabled properly structured and accurate service charge models, cost allocations by and between end users (including for the 2 hotels, F&B and other asset components) to be developed and assist the 2 hotel operators to develop their hotel operations expense budgets. This wasn’t just a technical achievement—it was a commercial one. We were able to activate the building’s full FM potential from the first day of operations.”
A New Standard for Handover in the UAE and Middle East region
One Za’abeel is more than a landmark. It’s a case study in how early planning, effective stakeholder engagement and collaboration, digital and progressive data capturing, validation and delivery can fundamentally improve project operational outcomes.
Through 4FMS FM procurement and financial modelling expertise and OmTrak’s combined AIR Platform and Project Handover Compliance Consulting (PHCC), ITHRA Dubai delivered one of the most digitally mature and operationally ready developments in the Dubai, UAE and the region.
ITHRA appointed ISO Auditor rated One Za’abeel “one of the best” developments in the region for the completeness and accuracy of its AIR data.This success is now informing standards across other projects with other developers and inspiring wider adoption of:
- Progressive digital asset handover workflows
- ISO 19650 (Information Management Requirements) guidance and compliance
- Cloud-based Asset Information Requirements platforms
- CAFM data transfer and configuration
- FM supply chain procurement and operational readiness
- Validated and digital AIR data retention for future change management
Final Word
In a region defined by fast-paced and complex developments with visionary and iconic master plans and project designs, One Za’abeel proves that the true legacy of a project lies in how it operates—seamlessly, smartly, and from day one. Bridging the gap between capex and opex is not easy, but putting a safety next in place using OmTrak digital software and WebFM’s resources ensured AIR data planning is complete earlier in the design of a project and ensures validation and compliance is achieved during construction, commissioning and handover to operations.
